Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor

Brand Name : Masing Motor

Model Number : MS06PM10

Certification : 16949,ROHS,CE,ISO

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000piece/per month

Delivery Time : 3-5 work weeks

Packaging Details : Carton Box

Product name : dc motor planetary gearbox 6mm

Shaft type : Flat ,D-Cut or Round or Customized

Efficiency : 56%-90%

Speed : Customized

Gearbox Diameter : φ6mm

Gearbox type : Micro Planetary Gearbox

Gear material : Precision plastic gear

Motor type : 6mm Coreless DC Motor

Keywords : 6mm mini plastic planetary dc gearbox motor

Direction of motor : CW&CCW

Noise : Low Noise

Gearbox material : Plastic gearbox

Contact Now

Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor
Product Overview

6mm Micro Coreless Planetary Gear Motor designed for eye massager medical vision correction products and various precision applications. This high-performance motor combines efficiency with quiet operation.

  • High Efficiency: 70% efficiency rating
  • Rated Speed: 100-3000 RPM (customizable)
  • Voltage Range: DC 1.2V-12V
  • Gearbox Diameter: φ6mm (Plastic material)
  • Shaft Diameter: φ2mm (Plastic material)
  • Motor Size: φ6×18.6mm coreless planetary gear DC motor
  • Working Temperature: -40°C to +60°C
  • Low Noise: ≤55DB operation
  • High Torque: 0.5-2.0 kg.cm
Technical Specifications
Model Voltage (VDC) Current (mA MAX) Speed (rpm) Output Torque (g-cm) Gear Ratio Gear Box Length (mm) Total Length (mm)
MS06PM10-5.14-MD16001 3 230 6420 5 5.14 4.70 17.60
MS06PM10-26.45-MD16002 3 230 1200 27 26.45 7.05 19.90
MS06PM10-136.2-MD16003 3 230 242 120 136.02 9.40 22.25
MS06PM10-699.55-MD16004 3 230 46 180 699.55 11.75 24.70

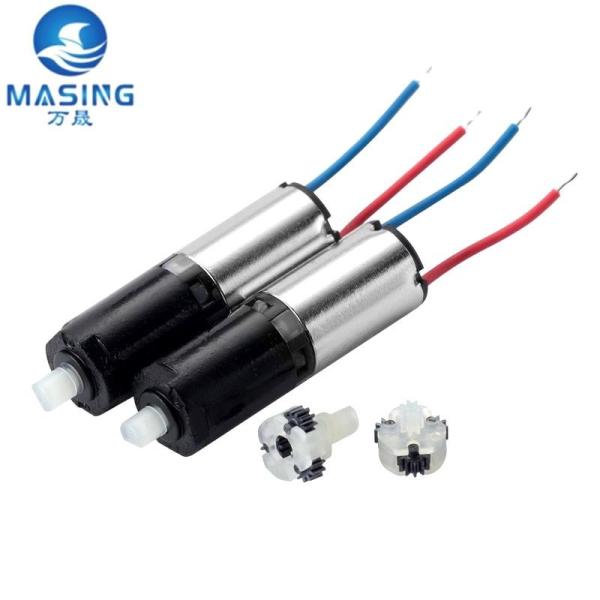

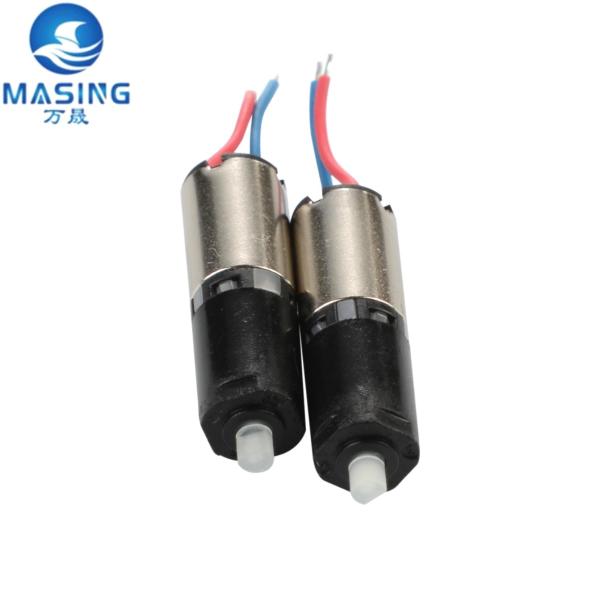

Product Images
Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor
Applications

Eye Massager Medical Vision Correction Products, door-lock systems, robots, SMART HOME devices, Electric Bicycle Locks, Cosmetic Instruments, Driverless technology, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication.

Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor
Packaging & Delivery
  • Packaging: Strong Carton 400pcs/box, or customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Selling Units: Single item
  • Package Size: 37×27×24cm
  • Gross Weight: 10.0kg
  • Supply Ability: 100,000 pieces per month
Lead Time
Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Maximum sample quantity: 1 piece | Sample price: $5/piece or Negotiable

Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor
Frequently Asked Questions
Q1: Are you factory or trading company?
A1: Yes, we are factory. Main products include micro geared motors, brushless DC motors, DC motors and DC planetary gear boxes.
Q2: What's the price?
A2: We're a professional manufacturer. The exact price is based on clients' specifications, such as speed and voltage requirements.
Q3: What is the quality of the planetary reducer?
A3: Our gear motors are exported to Japan, Germany, USA, UK, Indonesia, Singapore and other countries. Customers report excellent operation, low noise and large torque.
Q4: How can you guarantee the quality?
A4: We conduct 100% finished product inspection before delivery with no defective products returned.
Q5: What's the MOQ?
A5: MOQ is flexible depending on product complexity and production season. Please contact our sales team for confirmation.
Q6: Can you make our logo on the products?
A6: Certainly. Logo customization is available as most of our products are customizable.
