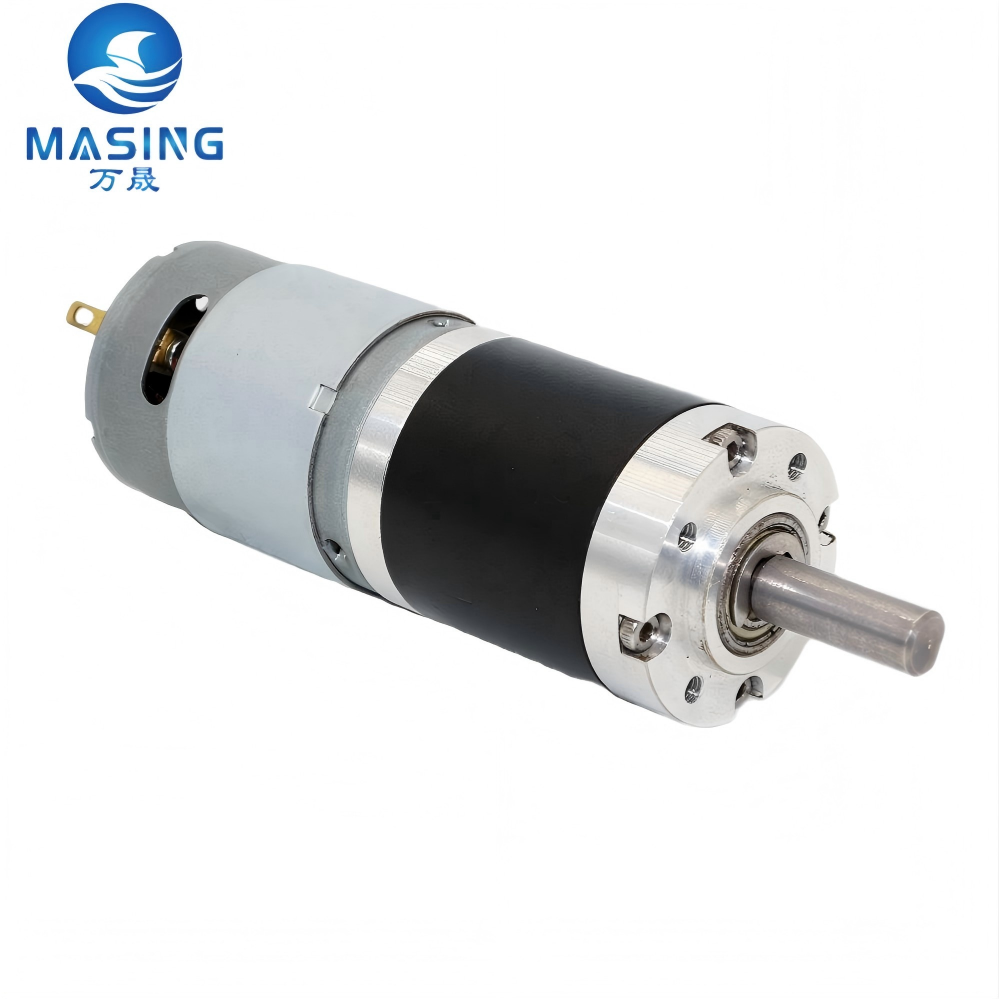

28mm Micro Brush DC Motor Planetary Gearbox
High-torque planetary gearbox with brush DC motor designed for robotic vacuum cleaners, massagers, and precision applications requiring compact size and reliable performance.
Product Overview
BL2838 28mm Planetary Geared Motors with Hall Sensor Type BLDC Motor and Reducer
Key Specifications
- Model: PG28-390/395 DC RS-395/390 Brush Planetary Reduction DC Motor
- Rated Speed: 5rpm - 1000RPM (customizable)
- Gearbox Size: φ28mm diameter
- Motor Type: Brushless DC Motor with built-in driver
- Working Temperature: -40°C to +60°C
- Certifications: CE, RoHS, ISO9001, REACH, 16949
- Minimum Lifetime: 20,000 hours
- Direction: CW & CCW available
Technical Features
- PWM pulse wide speed range
- FG speed feedback signal
- Low EMC and noise levels
- Current protection: Over-current, Over-voltage, Under-voltage
- High efficiency: 90-58%
- Gears Material: Metal, steel, plastic, powder metallurgy
- Shaft diameter: 6mm, 8mm options
Product Images
Technical Specifications
Micro 28mm DC Brushed Planetary Gear Motor designed for SMART HOME, Electric Bicycle Locks, Cosmetic Instruments, robotics, 5G applications, personal care, home applications, industrial apparatus, and medical equipment.
Motor Technical Data
| Model |
Rated Voltage (V) |
No-load Speed (RPM) |
No-load Current (A) |
Rated Torque (g.cm) |
Rated Speed (RPM) |
Rated Current (A) |
Rated Power (W) |
Stall Torque (g.cm) |
| RS-395-12 |
12.0 |
5200 |
0.2 |
200 |
3700 |
0.9 |
10 |
1600 |
| RS-395-24 |
24.0 |
8600 |
0.3 |
250 |
6100 |
1.1 |
29 |
2900 |
Packaging & Delivery
Packaging: Strong Carton 100pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37*27*24cm
Gross Weight: 20.0kg
Supply Ability: 100,000 pieces per month
Lead Time
| Quantity (pieces) |
1 - 100 |
101 - 1000 |
> 1000 |
| Lead Time (days) |
10 |
15 |
To be negotiated |
Samples
Maximum Order Quantity: 1 piece
Sample Price: $15/piece
Certifications
Factory & Product Classification
Applications
Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment.
Frequently Asked Questions
Q1: What's the price?
A1: As a professional manufacturer, the exact price is based on client specifications including speed, voltage, and other requirements.
Q2: What's the MOQ?
A2: MOQ is flexible depending on product complexity and production schedule. Please contact our sales team for confirmation.
Q3: Can you send samples before the order?
A3: Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FEDEX, or DHL.
Q4: Can you add our logo to the products?
A4: Yes, logo customization is available for most products as part of our customization services.
Q5: Do you offer customization services?
A5: Yes, we can customize voltage, speed, torque, shaft size/shape, and add connectors, capacitors, or EMC components as required.
Q6: Do you provide individual design services?
A6: Yes, we offer custom motor design services, which may involve mold charges and design fees.
